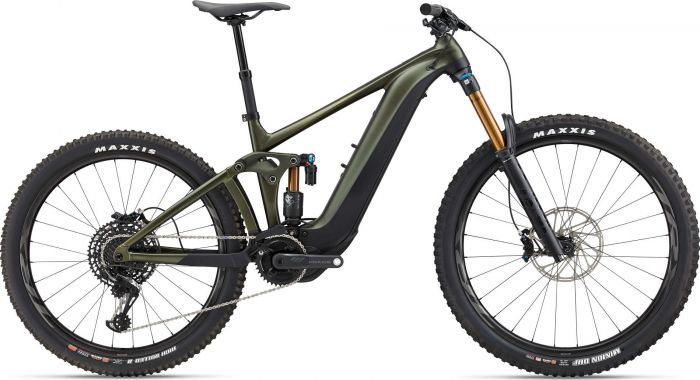

GIANT REIGN E+ 0 2022

Trail technology

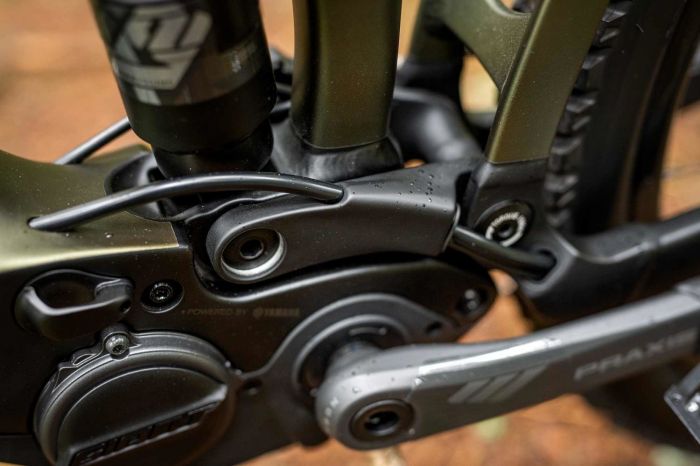

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK SMART 750 / SYNCDRIVE PRO

• Extreme: 70 KM
• Good: 130 KM
• Ideal: 230 KM

• Motor: SyncDrive Pro, 85Nm, powered by Yamaha

• Kezelő: RideControl Ergo 3, grip integrated

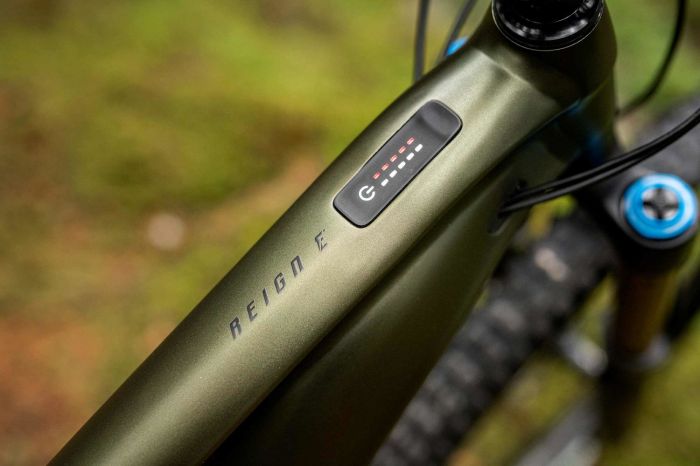

• Kijelző: RideControl GO, frame integrated LED displayANT+ Wireless display compatible

• Akkumulátor: EnergyPak Smart 750WhEnergyPak Plus range extender compatible

• Méretek: S, M, L, XL

• Szín: Phantom Green

• Váz: ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derrailleur hanger

• Villa: Fox 38 Float Factory 29er, 170mm travel, GRIP2 VVC Damper, Boost 110x15 Kabolt floating axle, with fender, e-Bike optimized

• Rugóstag: Fox Float X2 Factory, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned

• Kormány: Giant Contact Trail SL, 35x800mm

• Grips: Giant Tactal Pro-E, single lock-on

• Stucni: Giant Contact SL 35

• Nyeregcső: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)

• Nyereg: Giant Romero SL Trail

• Pedálok: Flat pedal

• Váltókarok: SRAM XO1 Eagle

• Első váltó: MRP 1X HD2 custom co-molded chain guide

• Hátsó váltó: SRAM XO1 Eagle

• Fékek: SRAM Code RSC, hydraulic disc, 220mm[F] /200mm[R]

• Fékkarok: SRAM Code RSC

• Fogaskoszorú: SRAM PG-1230, 11-50T, 12-speed

• Lánc: SRAM XO1 Eagle PowerLock

• Hajtómű: SRAM X-Sync Eagle 36T chainringPraxis e-Carbon custom carbon crankarm set (S/M:160, L/XL:165)

• Középcsapágy: N/A

• Felnik: Giant e-TRX 29"[F] 27.5"[R], Tubeless ready, 30mm inner width

• Agyak: Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle

• Küllők: Giant e-TRX

• Külsők: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]

• Kiegészítők: Tubeless kit (liquid, valves, levers, manual, tool)

• Világítás: Optional:- Giant Recon series e-bike lights available and direct connectable
